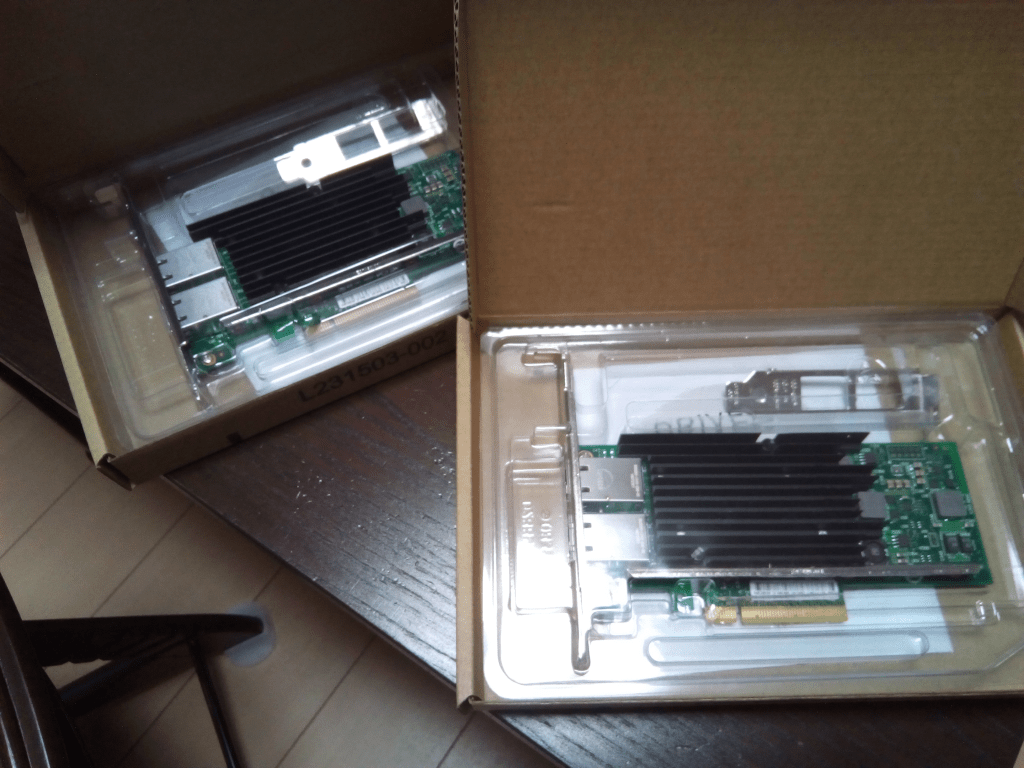

ebayで注文していたX540-T2が到着しました。注文したのが、9/15で発送が9/16。到着予定が9/27-10/13という予定で、10/1に届いたので一般的な中国(シンセン)からの発送としては問題ないスピードです。
LowProfileのブラケットとドライバCD付きです。ドライバはKernel標準のものをとりあえず使うつもりだしIntel製を使うとしても最新版をサイトから入手するので、開封して使うことはないでしょう。

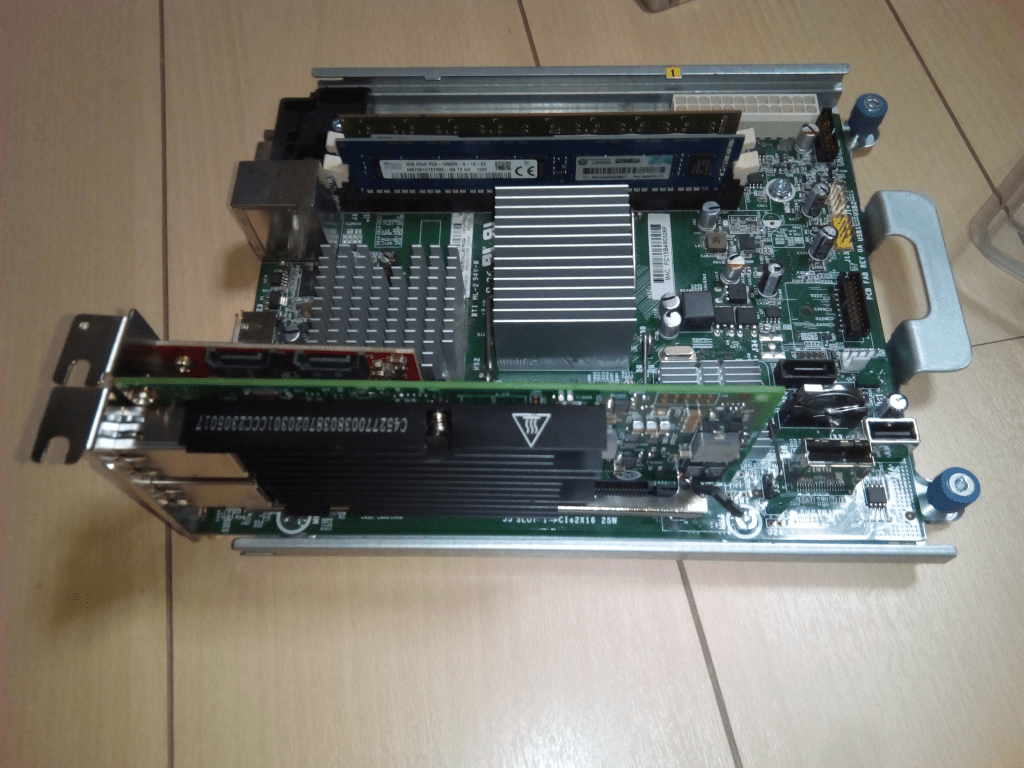

さっそく、テスト接続です。とりあえずは、N54Lと公式鯖待機系に接続です。(写真はN54Lのマザーボードに取り付けた状態のもの)
02:00.0 Ethernet controller: Intel Corporation Ethernet Controller 10-Gigabit X540-AT2 (rev 01) 02:00.1 Ethernet controller: Intel Corporation Ethernet Controller 10-Gigabit X540-AT2 (rev 01)
dmesgの出力結果を見てもixgbeでちゃんと認識されてますね。
[ 6.367589] ixgbe: Intel(R) 10 Gigabit PCI Express Network Driver - version 4.4.0-k [ 6.367594] ixgbe: Copyright (c) 1999-2016 Intel Corporation. [ 7.556454] ixgbe 0000:02:00.0: Multiqueue Enabled: Rx Queue count = 2, Tx Queue count = 2 [ 7.593112] ixgbe 0000:02:00.0: PCI Express bandwidth of 32GT/s available [ 7.593114] ixgbe 0000:02:00.0: (Speed:5.0GT/s, Width: x8, Encoding Loss:20%) [ 8.713642] ixgbe 0000:02:00.0: MAC: 3, PHY: 0, PBA No: G45270-003 [ 8.713648] ixgbe 0000:02:00.0: a0:36:9f:1f:a0:7c [ 8.880856] ixgbe 0000:02:00.0: Intel(R) 10 Gigabit Network Connection [ 9.128170] ixgbe 0000:02:00.1: Multiqueue Enabled: Rx Queue count = 2, Tx Queue count = 2 [ 9.164490] ixgbe 0000:02:00.1: PCI Express bandwidth of 32GT/s available [ 9.164503] ixgbe 0000:02:00.1: (Speed:5.0GT/s, Width: x8, Encoding Loss:20%) [ 9.261582] ixgbe 0000:02:00.1: MAC: 3, PHY: 0, PBA No: G45270-003 [ 9.261588] ixgbe 0000:02:00.1: a0:36:9f:1f:a0:7e [ 9.414779] ixgbe 0000:02:00.1: Intel(R) 10 Gigabit Network Connection [ 9.416729] ixgbe 0000:02:00.1 enp2s0f1: renamed from eth1 [ 9.430448] ixgbe 0000:02:00.0 enp2s0f0: renamed from eth0 [ 581.584216] ixgbe 0000:02:00.0: registered PHC device on enp2s0f0 [ 1235.596537] ixgbe 0000:02:00.1: registered PHC device on enp2s0f1 [ 1440.720735] ixgbe 0000:02:00.1 enp2s0f1: NIC Link is Up 10 Gbps, Flow Control: RX/TX
とりあえずCAT6のクロスで接続した機器同士をデフォルトのMTU1500のままのiperfの結果はこちら。
[root@rooibos ~]# iperf -c uva ------------------------------------------------------------ Client connecting to uva, TCP port 5001 TCP window size: 85.0 KByte (default) ------------------------------------------------------------ [ 3] local 192.168.24.13 port 46538 connected with 192.168.24.10 port 5001 [ ID] Interval Transfer Bandwidth [ 3] 0.0-10.0 sec 8.36 GBytes 7.18 Gbits/sec
RB3011内蔵のスイッチがMTU 8000が上限なので、MTUを8000に変更した後の結果はこちら。
------------------------------------------------------------ Client connecting to uva, TCP port 5001 TCP window size: 325 KByte (default) ------------------------------------------------------------ [ 3] local 192.168.24.13 port 47576 connected with 192.168.24.10 port 5001 [ ID] Interval Transfer Bandwidth [ 3] 0.0-10.0 sec 11.1 GBytes 9.50 Gbits/sec
速度も申し分ありません。良い買い物しました。
早速、OpenVswitchで色々設定を仕込んでいきます。
